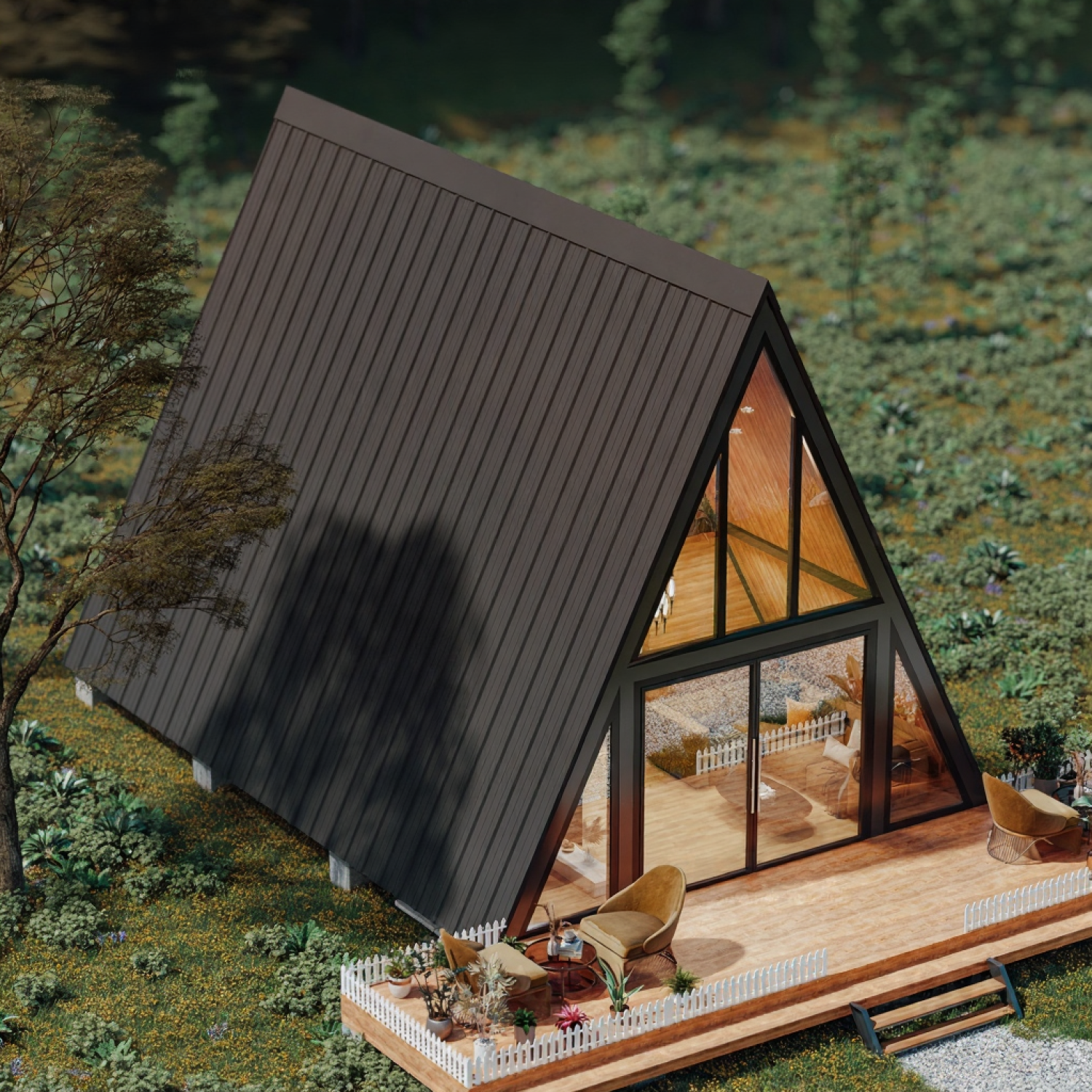

Achelos A-Frame Prefab House (DIY Structural Kit)

Designed for comfort and modern island living, the Achelos A-Frame offers two full-size bedrooms, panoramic glazing, and a spacious upper balcony — ideal for relaxing mornings or sunset views. Its sleek triangular form combines timeless aesthetics with durable modular construction.

Area

1. Total Floor Area: 108 m²

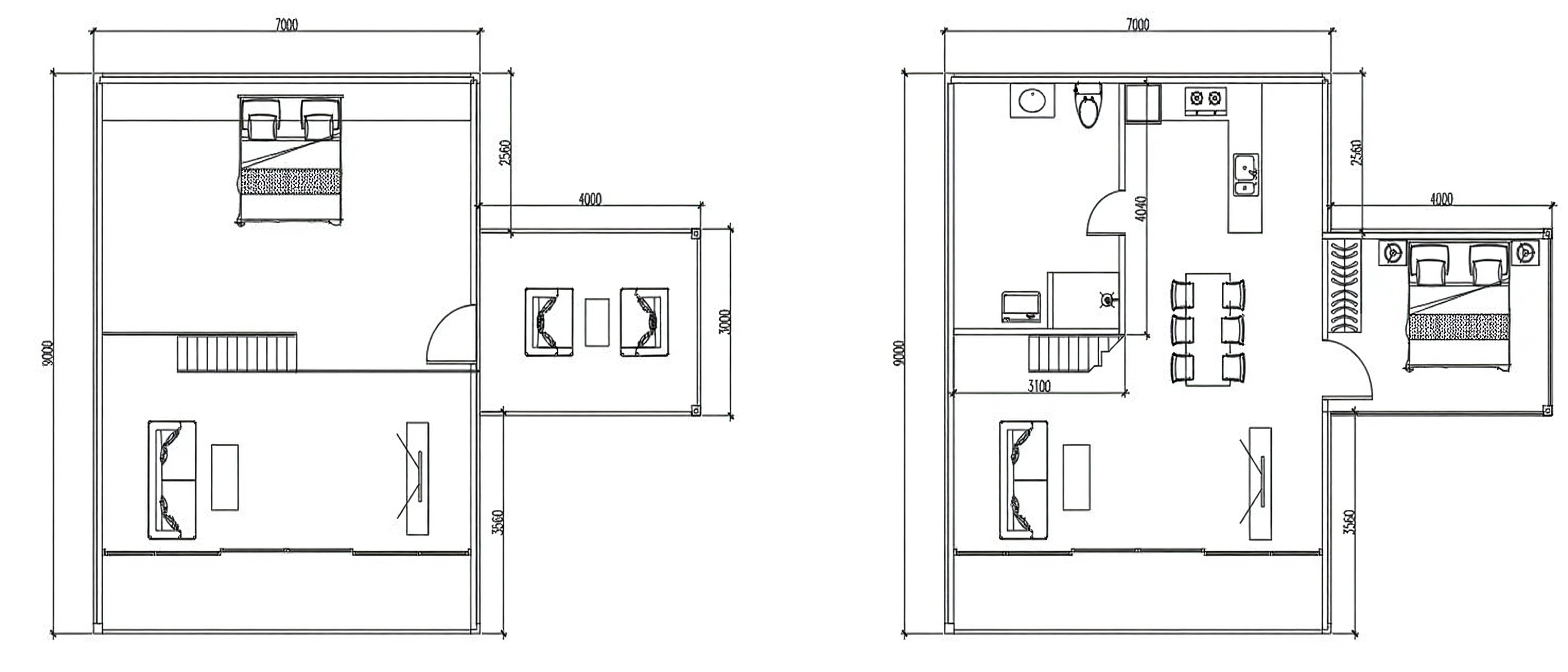

2. Length: 9 m / Width: 7 m / Height: 7 m (A-Frame)

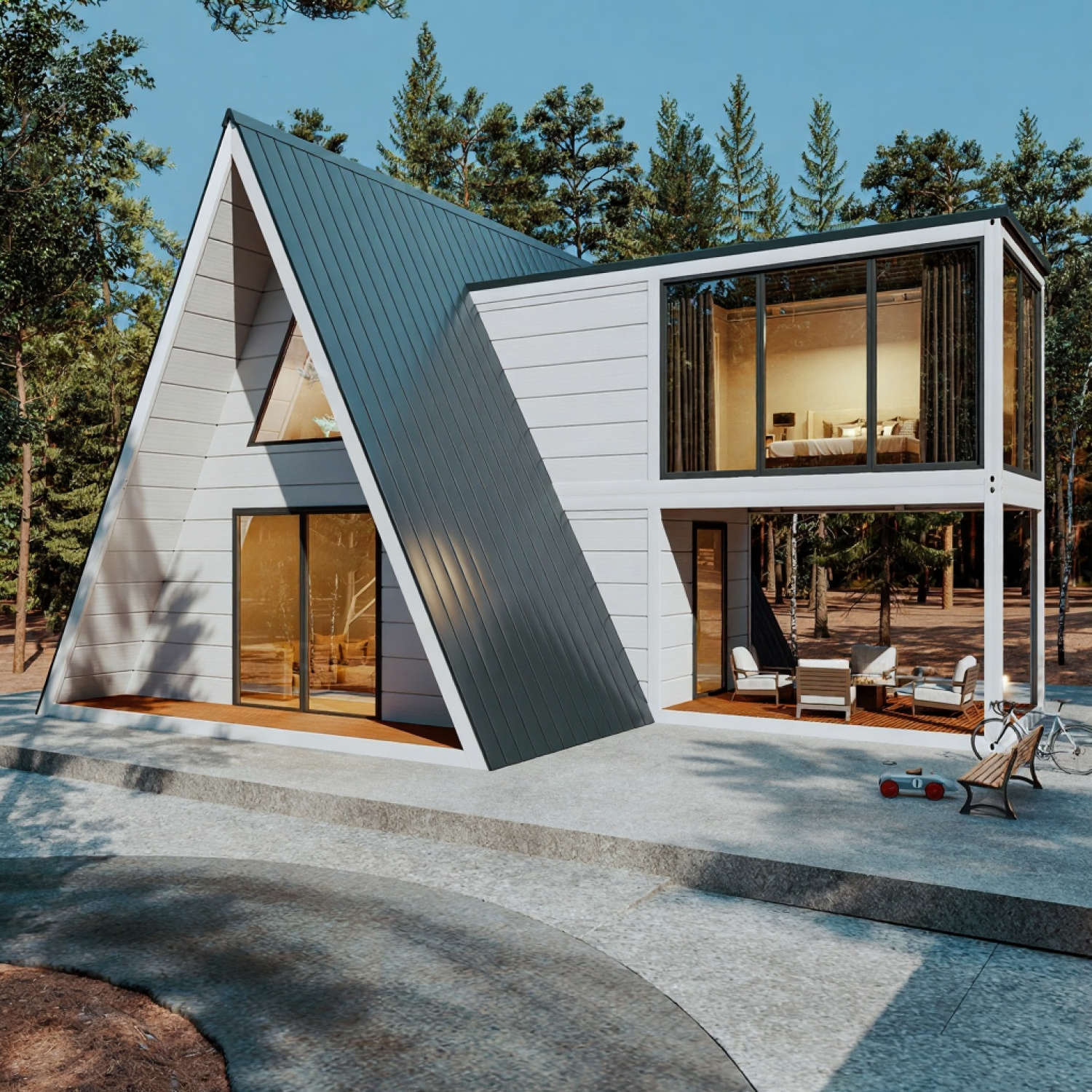

3. Length: 4 m / Width: 3 m / Height: 2.58 m (Extension Frame)

Main Structure

1. Metal Frame: 2.3 mm hot-dip galvanized steel structure (including loft and stairs)
2. Flooring: 18 mm cement fiberboard + SPC interlocking flooring, outdoor WPC decking
3. Roof & Walls: Sandwich panels (EPS / Rock Wool / PU / PIR) with inner decorative wall panels (bamboo fiberboard / WPC integrated panels) and nano-film metal tiles
4. Glass: 5 mm + 9 mm + 5 mm double-layer tempered glass for curtain walls, doors, and windows; laminated glass railings
5. Bathroom: Fully equipped – toilet, shower, exhaust fan, showerhead, mirror cabinet, and glass bathroom door
6. Electrical System: Complete CE-certified wiring and switches

Note:

Custom layouts and materials are available upon request.

Price includes shipping to the Cyprus' port and VAT.

Price excludes furniture, appliances, and installation services. Please, consult with our specialist to configure your own kit and get the final price.
