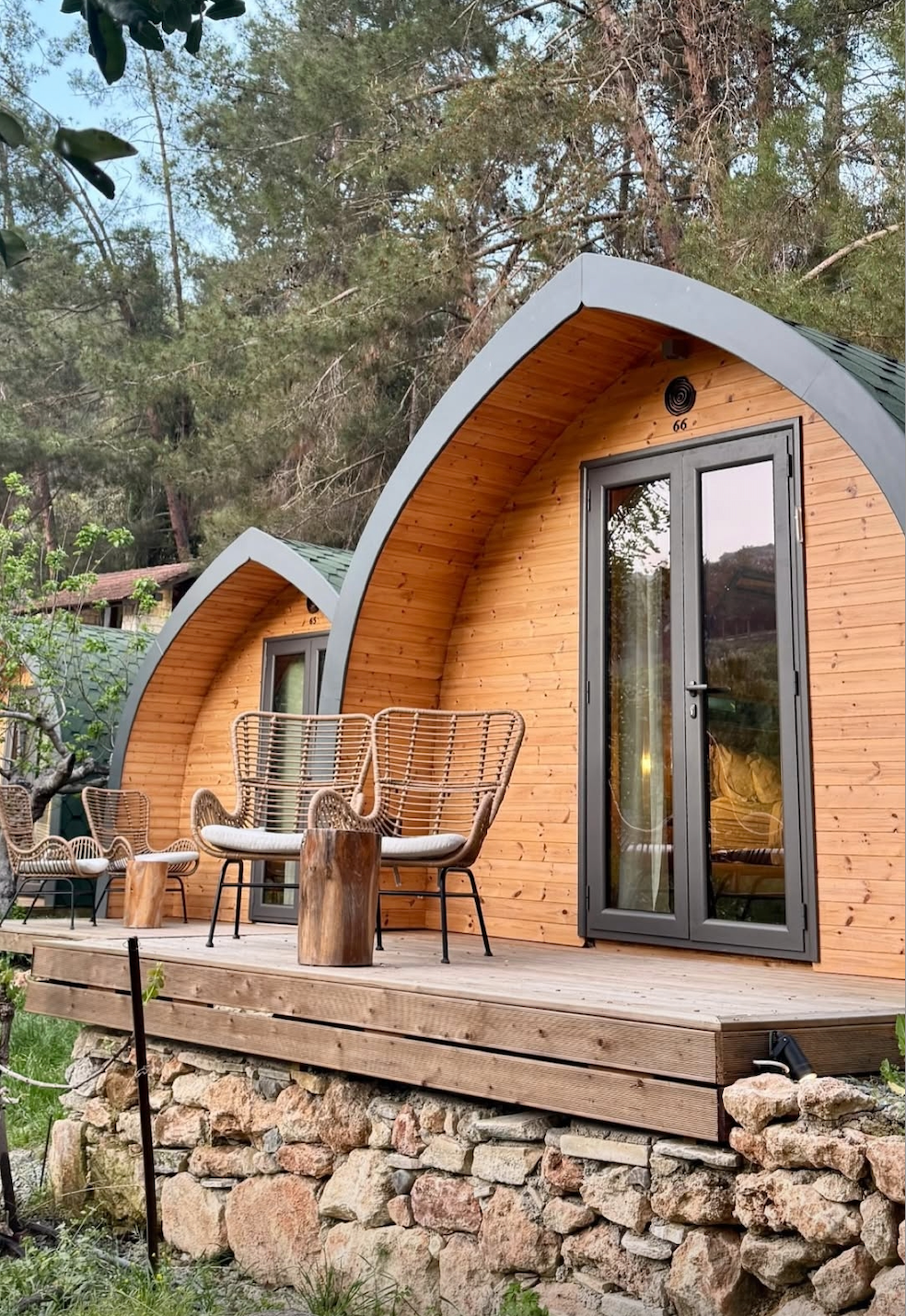

Adonis Wooden Cabin

Wooden modular house for private use, glampings, touristic villages, vocational homes.

Dimensions:

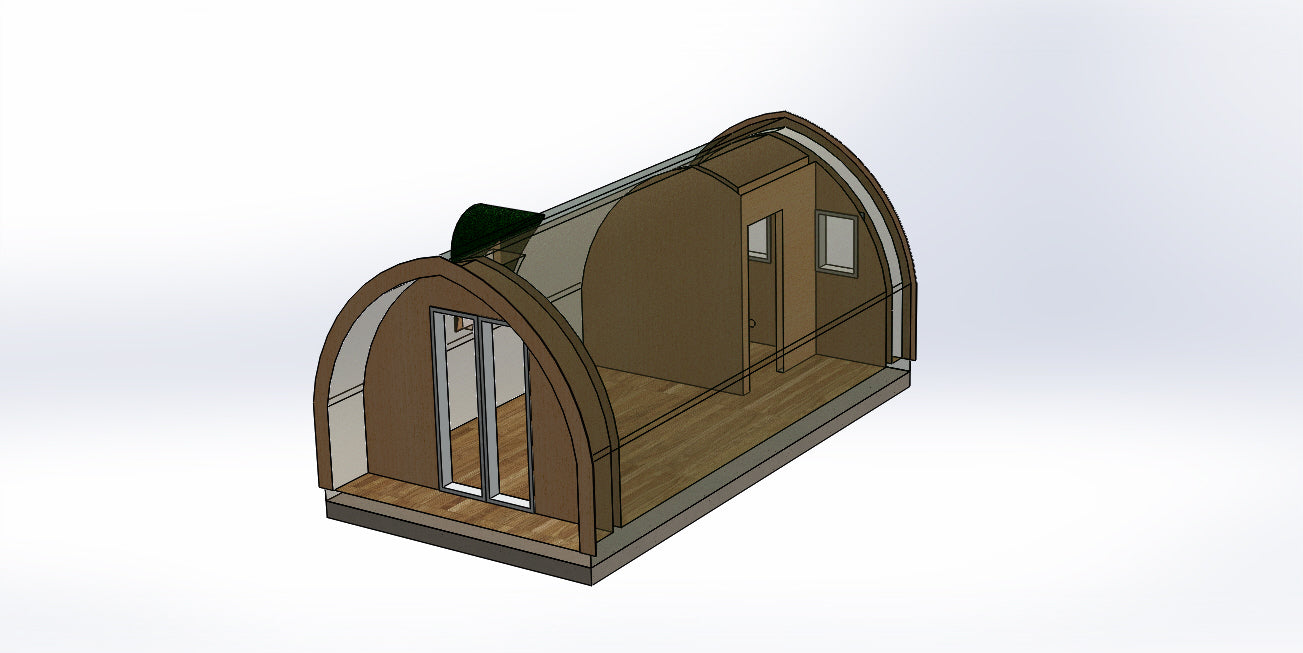

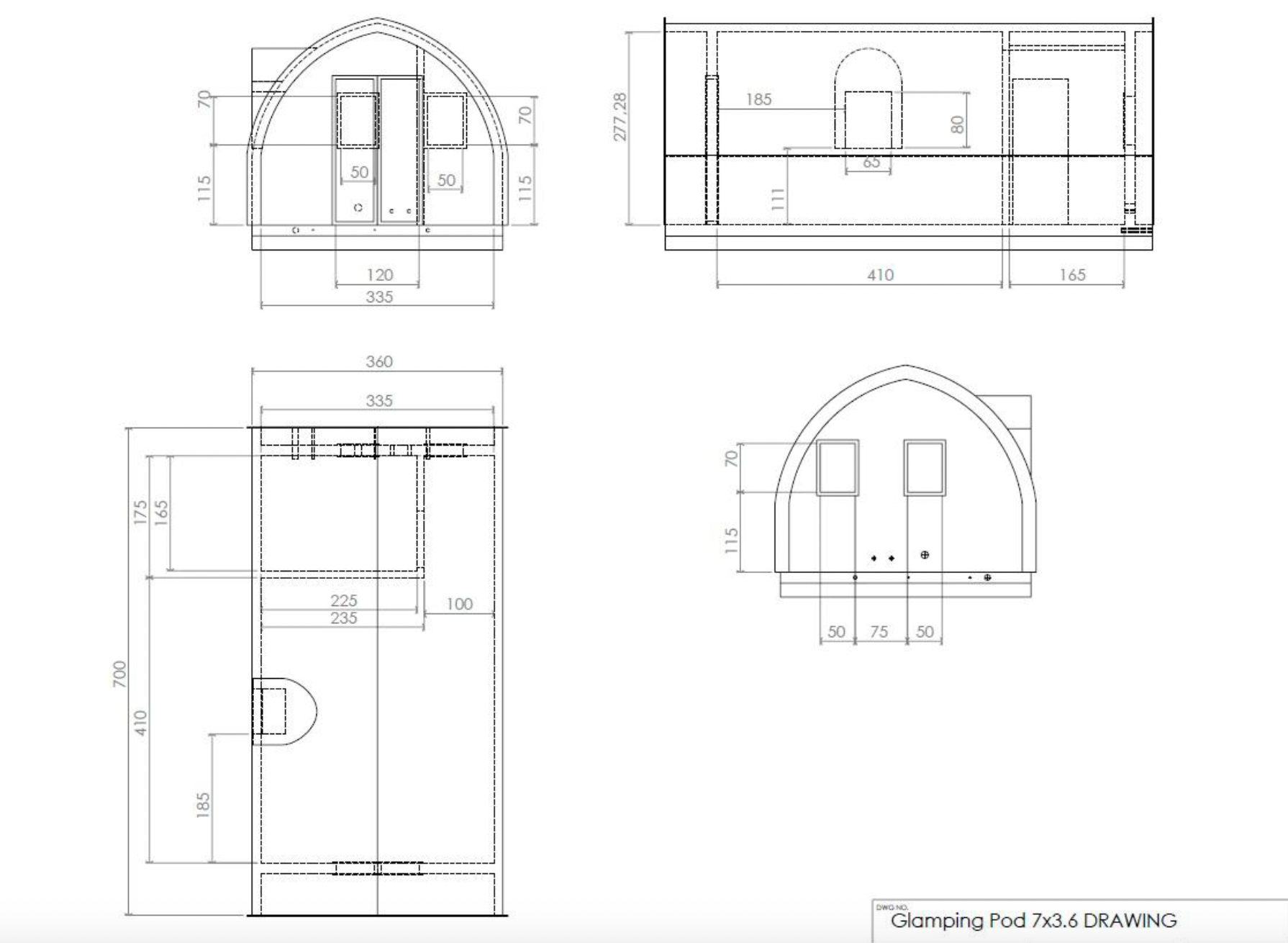

• 7.00m X 3.60m (25,2 m²)

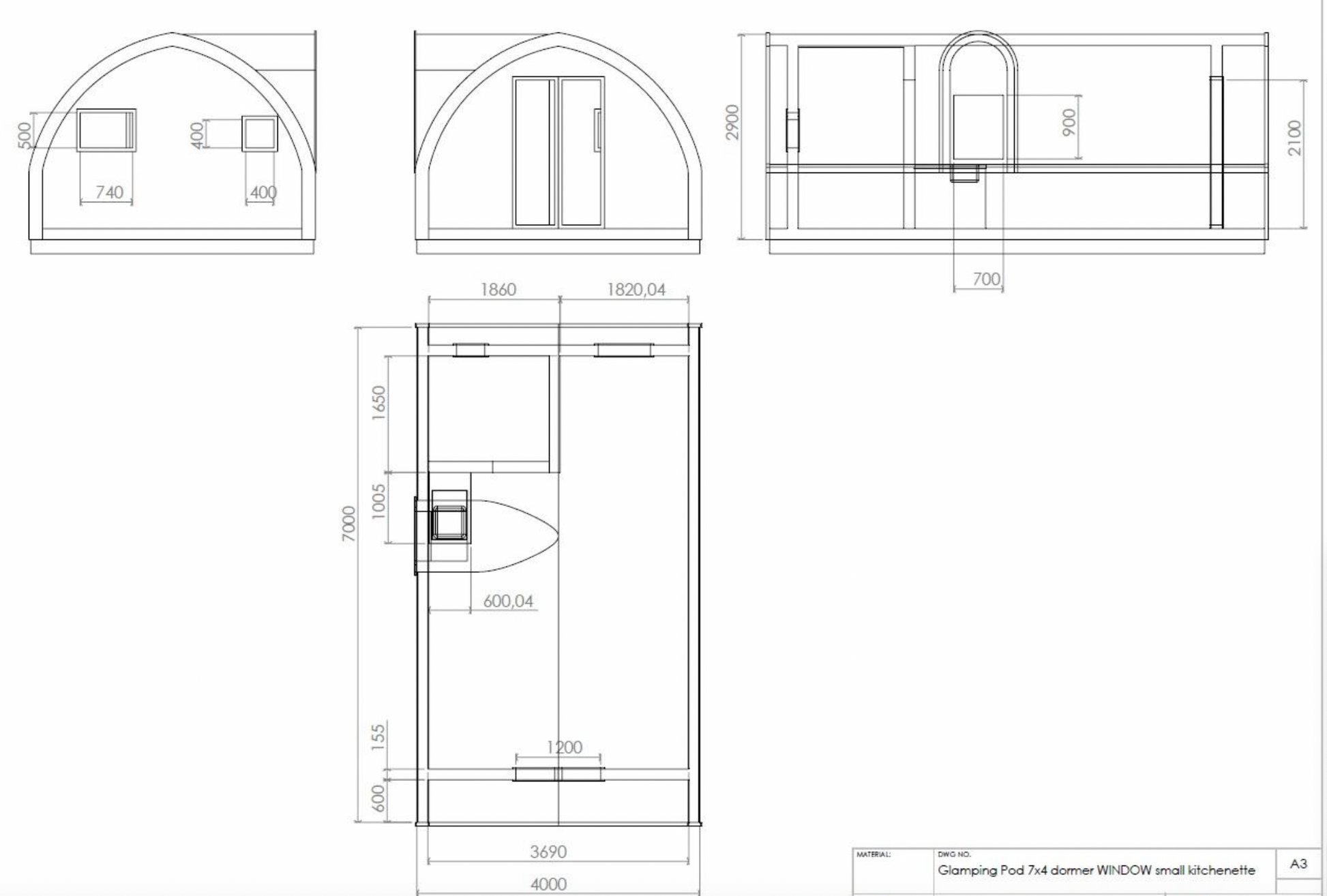

• 7.00m X 4.00m (28,0 m²)

Characteristics:

• Construction of the external wall frame with 155 mm masonry, timber studs (4" × 2"), marine plywood sheathing, 100 mm stone-wool insulation, and a ventilated cavity for air circulation.
• Construction of internal frame (WC walls) with double-sided masonry and 100 mm stone-wool insulation.
• Laminate flooring (Swiss Krono).
• Internal electrical installation: four double power outlets, three switches, one main distribution board, one heater switch, one smoke detector; includes upgrades with USB charging outlets and smart switches.
• Internal and external LED lighting.
• Internal plumbing installation.

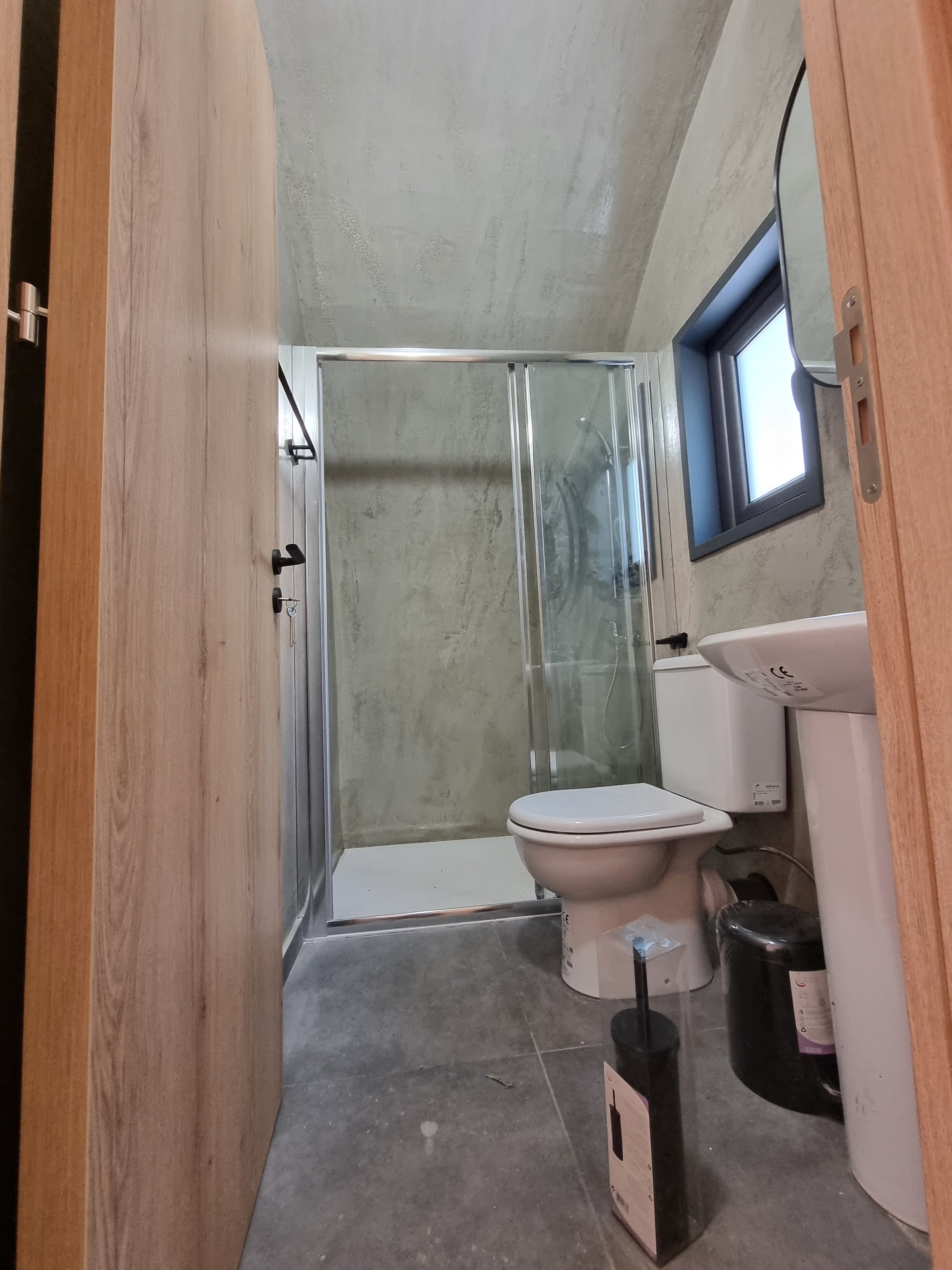

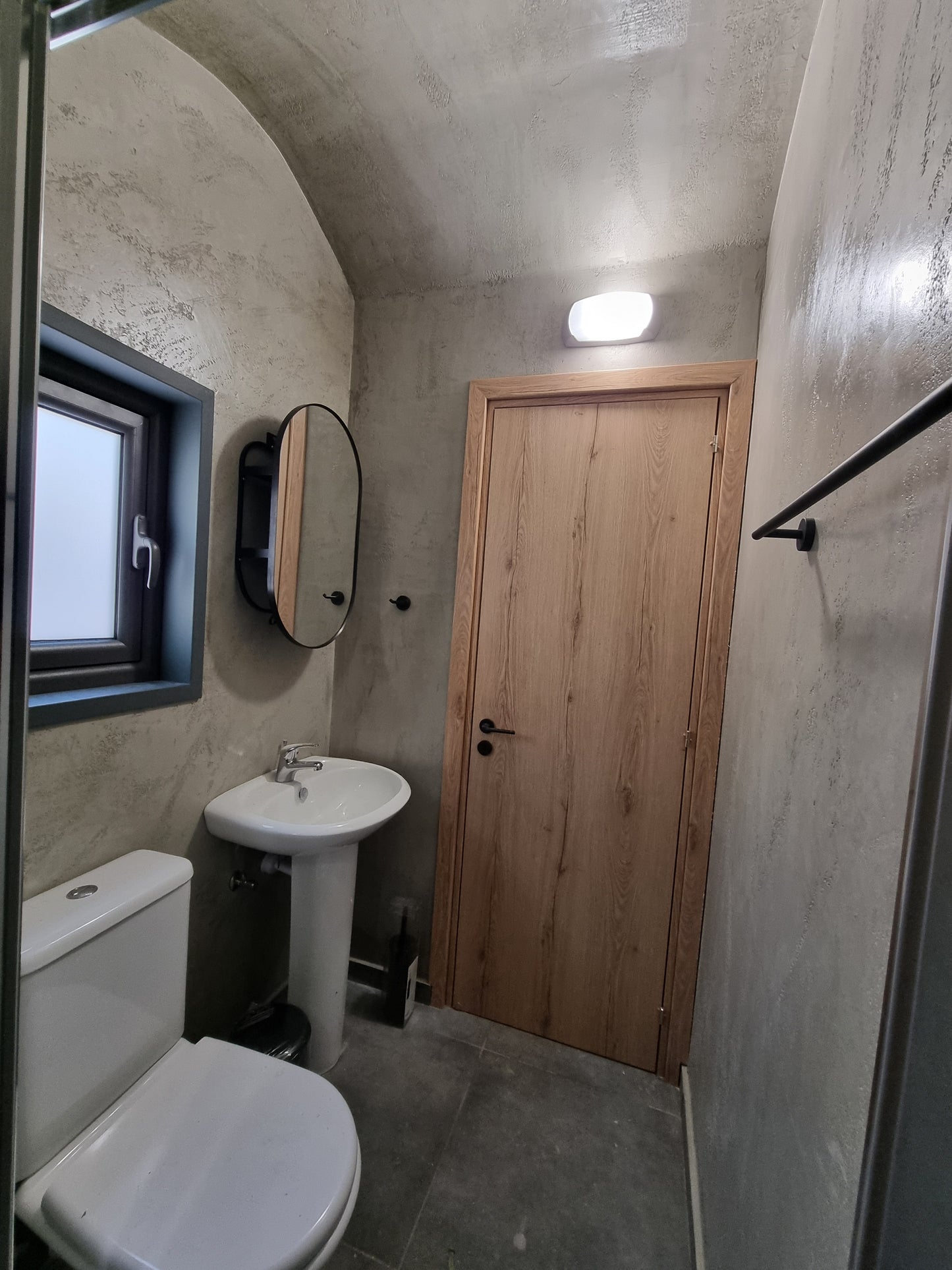

• WC/bathroom fit-out: exterior-grade fiberglass-reinforced drywall, full bathroom waterproofing, and installation of mechanical extract ventilation.
• Installation of sanitary ware (toilet bowl, shower enclosure, and basin), all made in Italy.

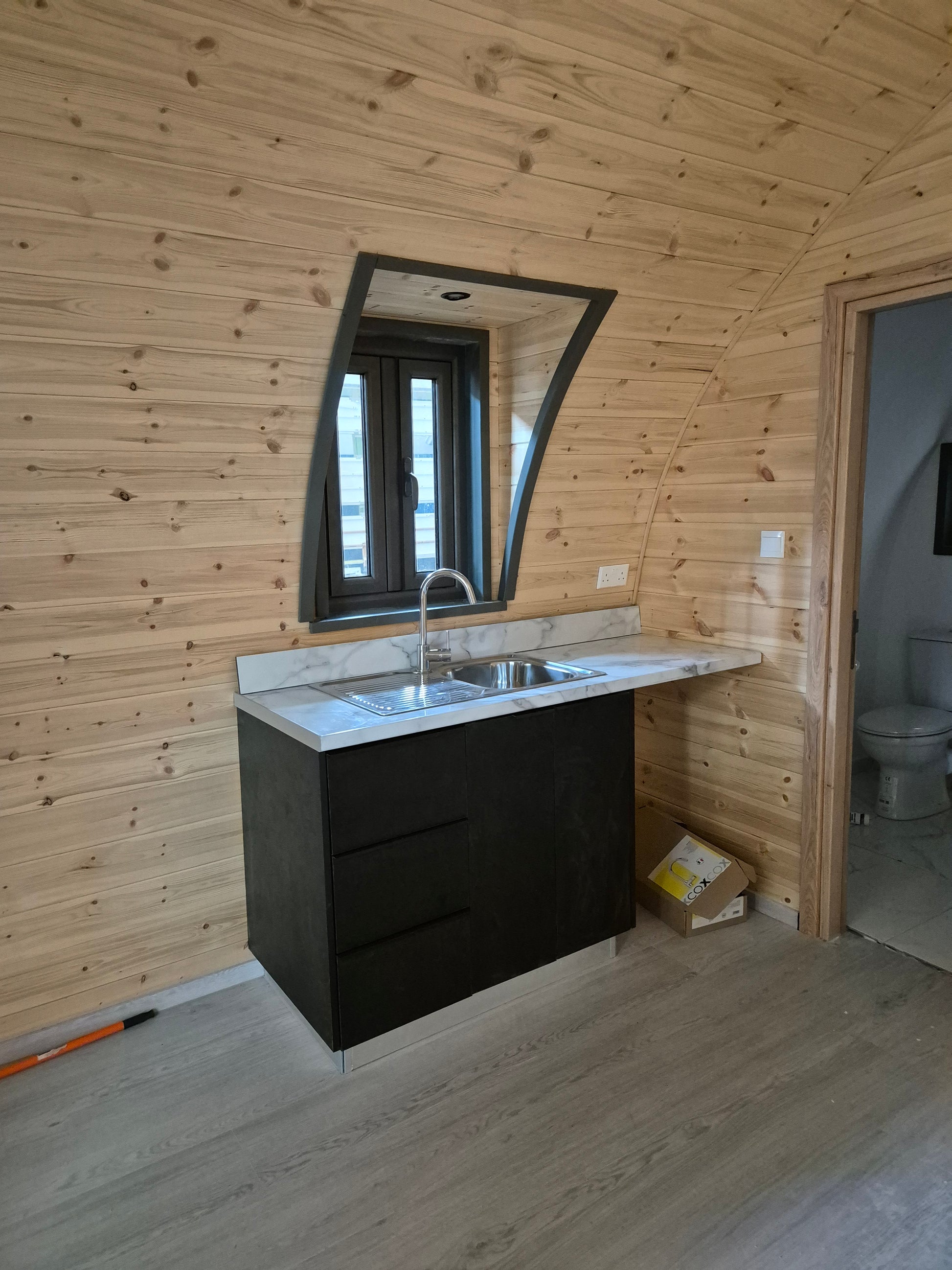

• Compact kitchenette.
• Provision for air conditioning.
• Roof waterproofing with ArmourShield asphalt shingle tiles.
• Aluminium window/door frames, MU2500 series, with double low-emissivity I-PLUS Light glazing, 28 mm units.
• Construction of a 7 m² timber deck.
• Dormer window.
