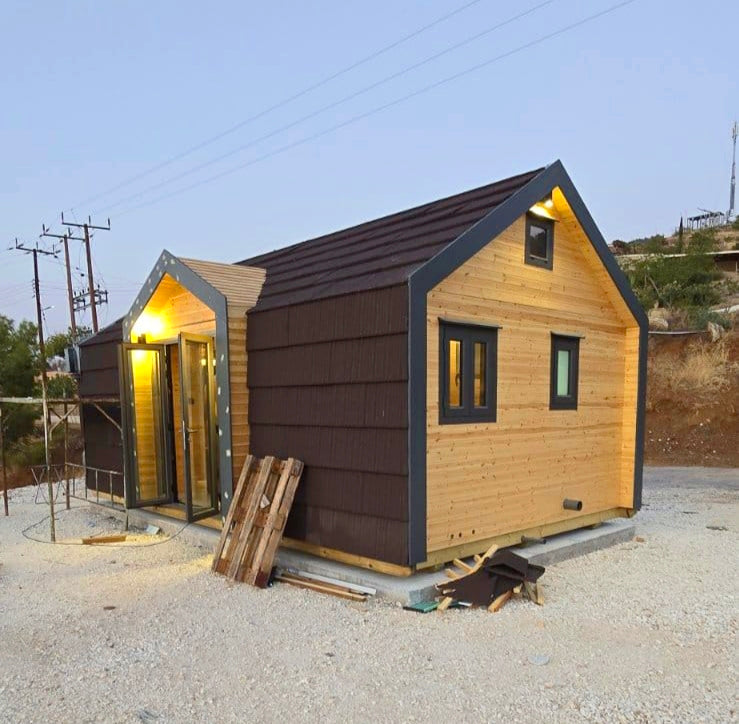

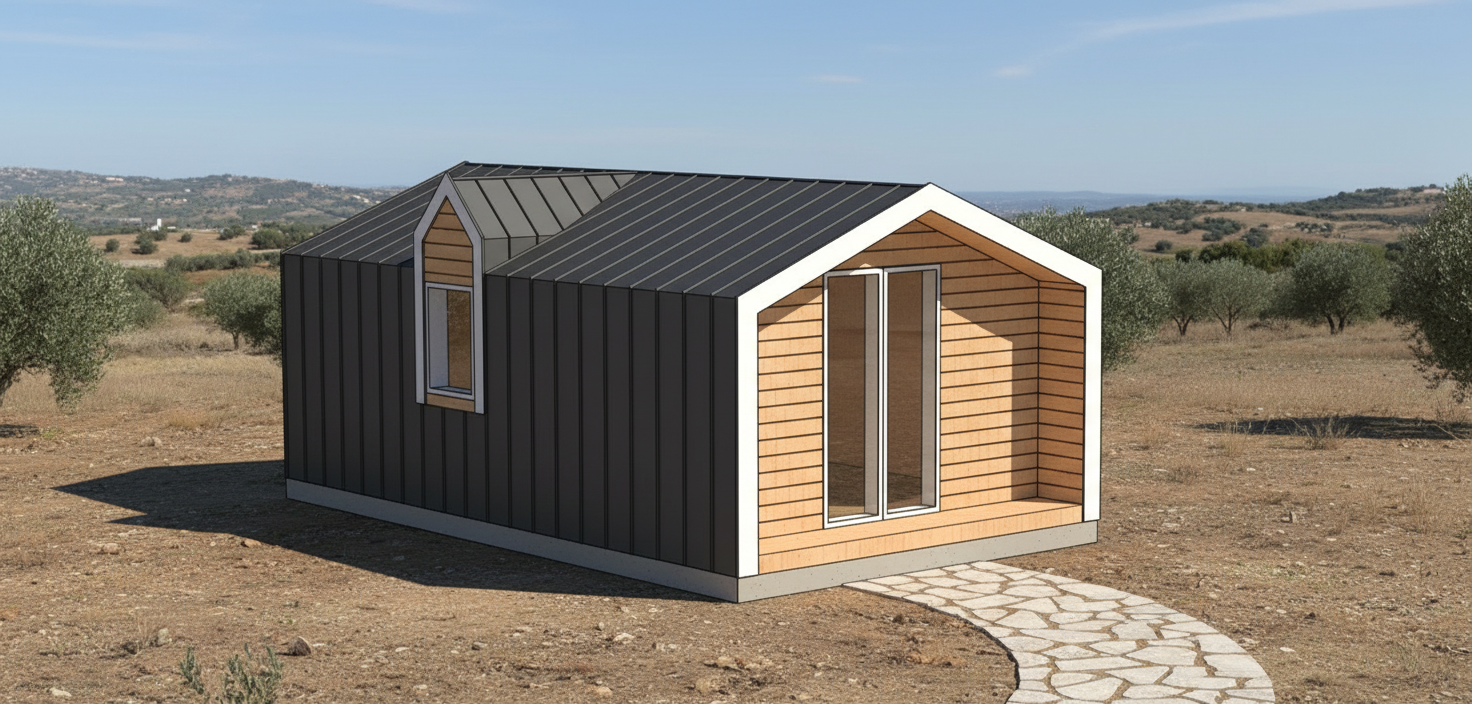

Iapetus Barn House (Mini, Classic, Maxi)

Dimensions

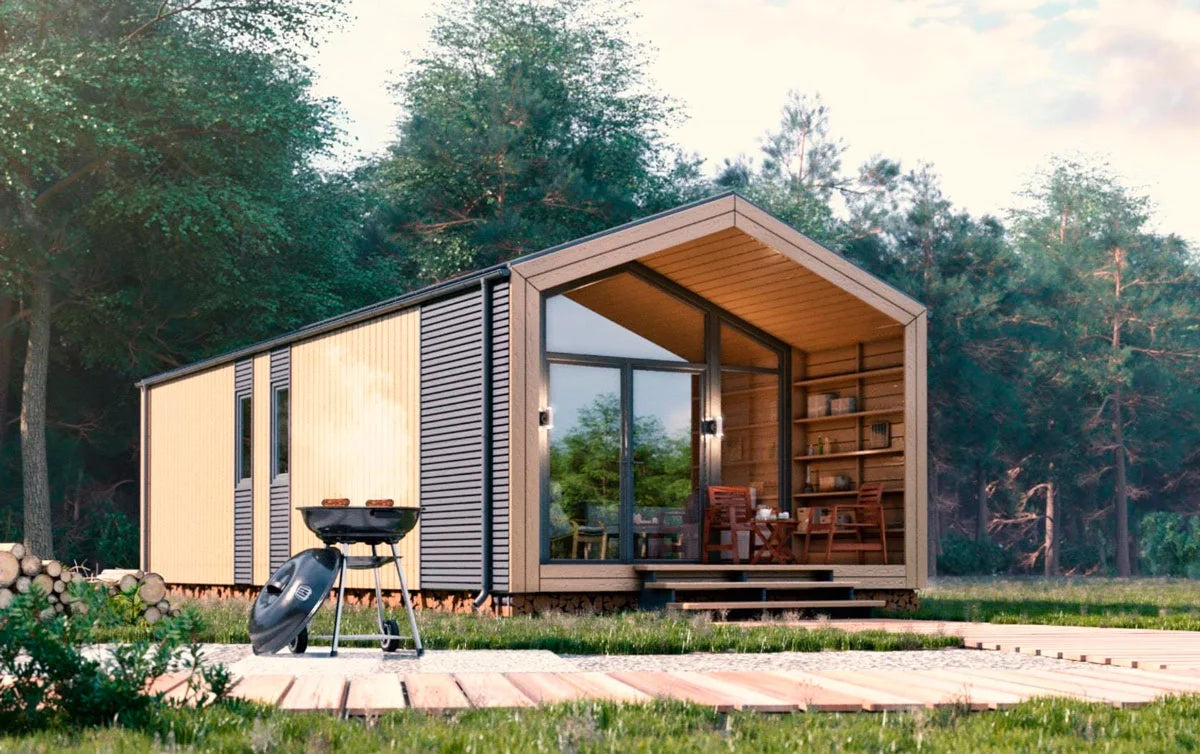

• Mini 15: 3.00 m × 5.00 m (15 m²)
• Classic 21: 3.60 m × 6.00 m (21.6 m²)
• Maxi 28: 4.00 m × 7.00 m (28 m²)

Specifications

• External wall build-up with overall thickness of 155 mm, comprising timber studs (4" × 2"), marine plywood sheathing, 100 mm stone-wool internal insulation, and a ventilated cavity to ensure air circulation.
• Internal frame (WC walls) constructed with double-sided masonry and 100 mm stone-wool insulation.
• Laminate flooring (Swiss Krono).
• Internal electrical installation: four double sockets, three switches, one main distribution board, one heater switch, one smoke detector; upgraded with USB charging outlets and smart switches.
• Internal and external LED lighting.
• Internal plumbing installation.

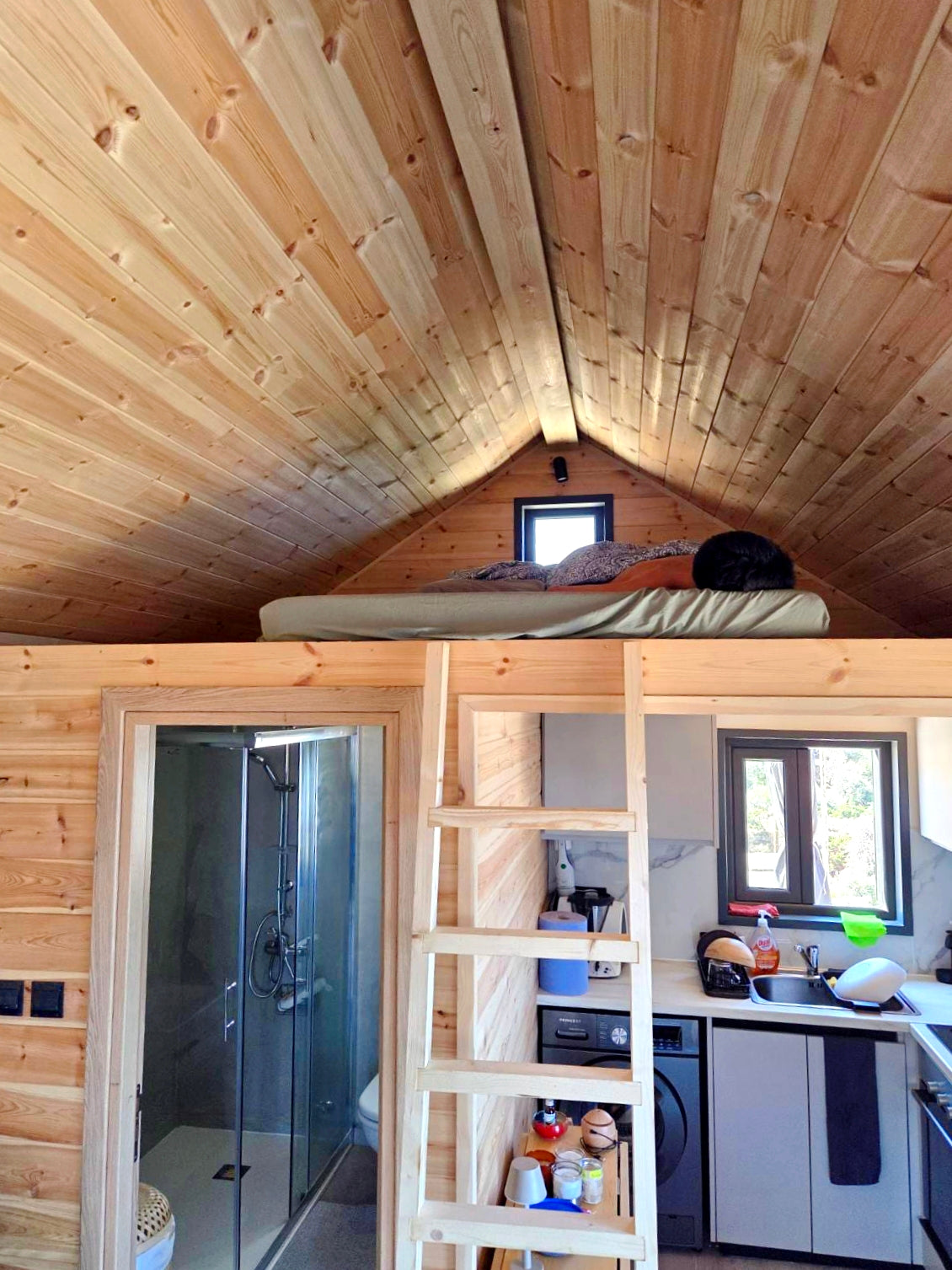

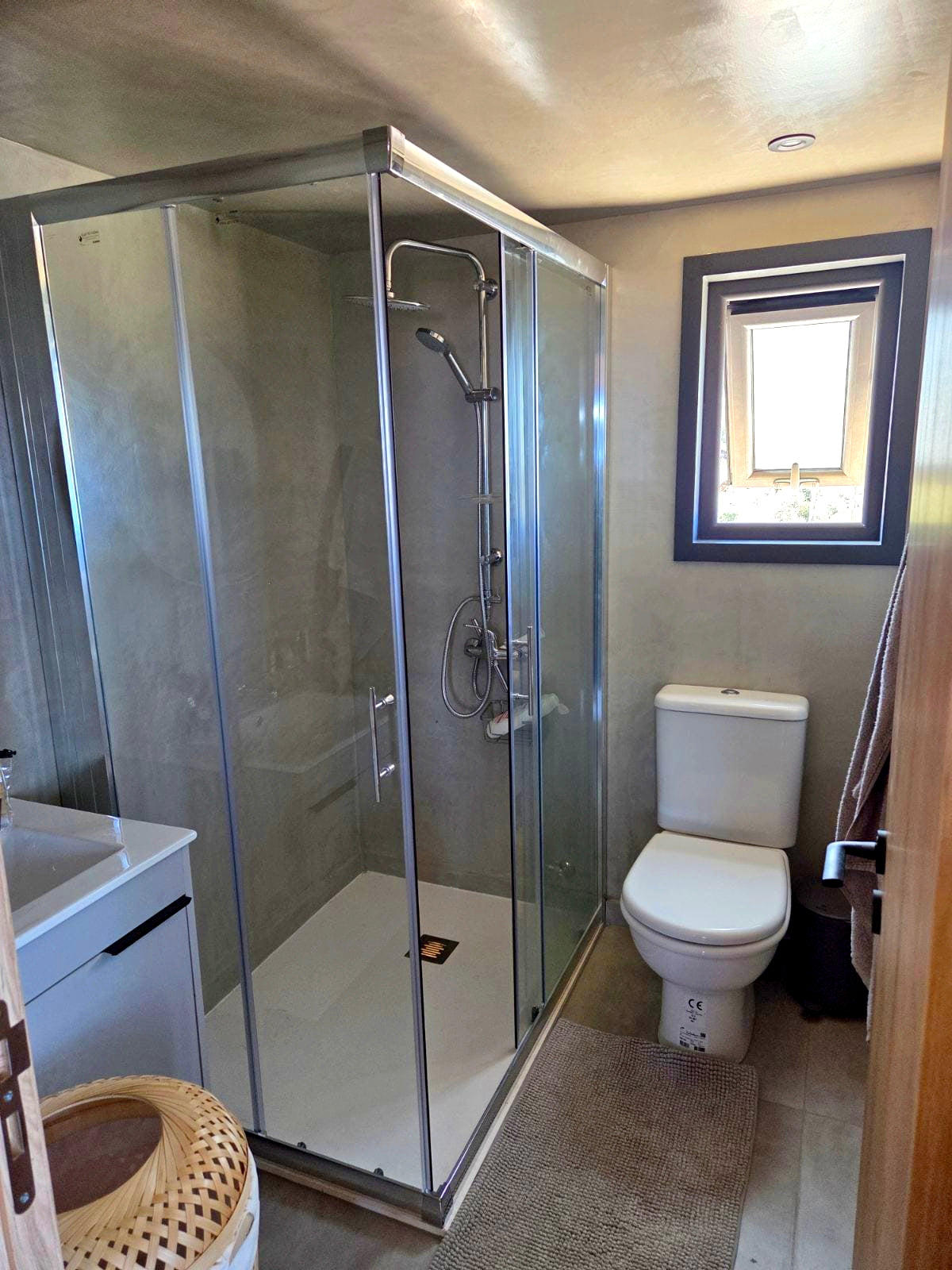

• WC/bathroom fit-out with exterior-grade, fibreglass-reinforced drywall, full waterproofing, and mechanical extract ventilation.
• Installation of sanitary ware (toilet bowl, shower enclosure, and basin), all made in Italy.

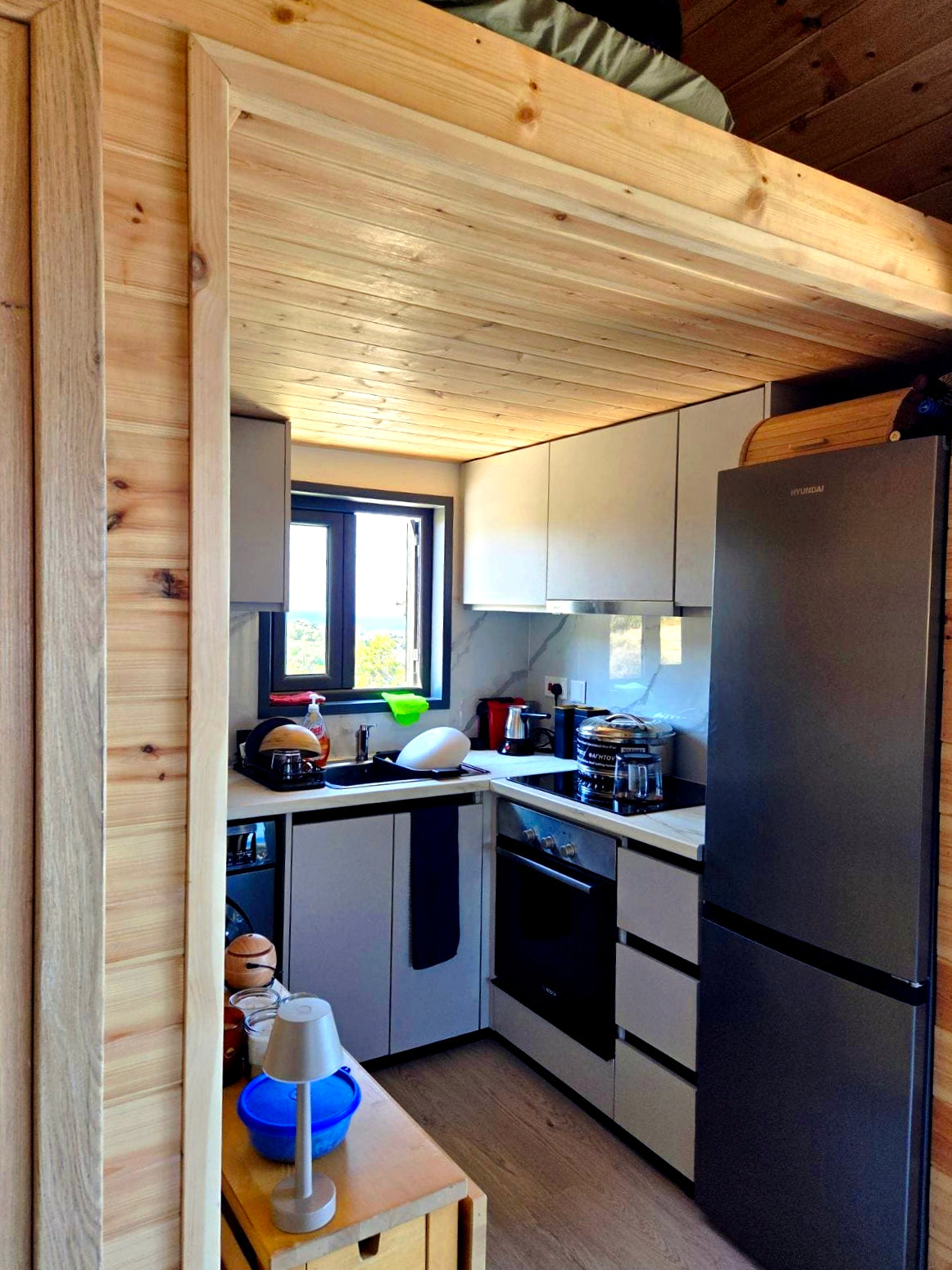

• Compact kitchenette (only in Classic and Maxi editions, no in Mini one).
• Provision for air conditioning.

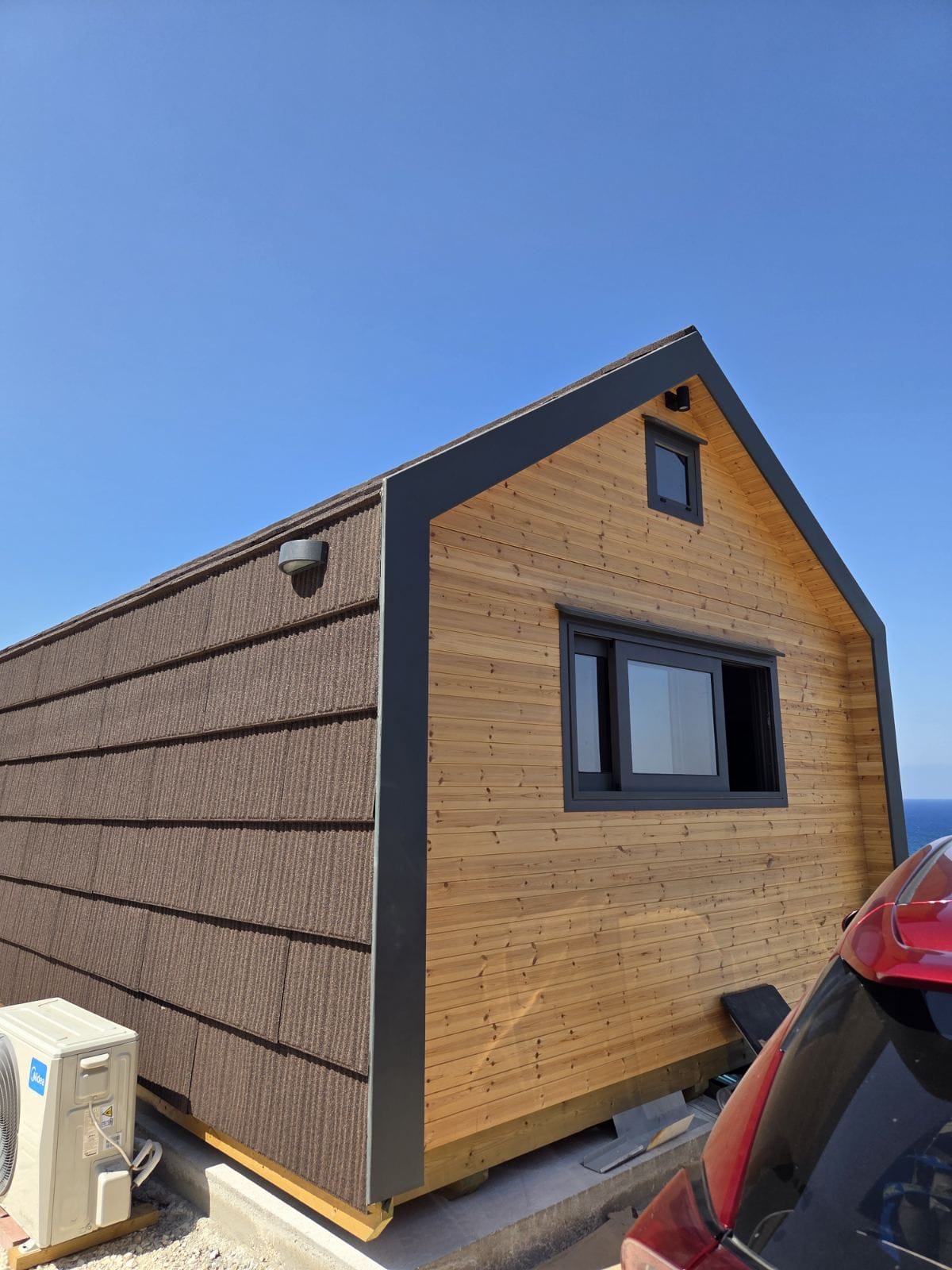

• Roof waterproofing with ArmourShield asphalt shingle tiles.

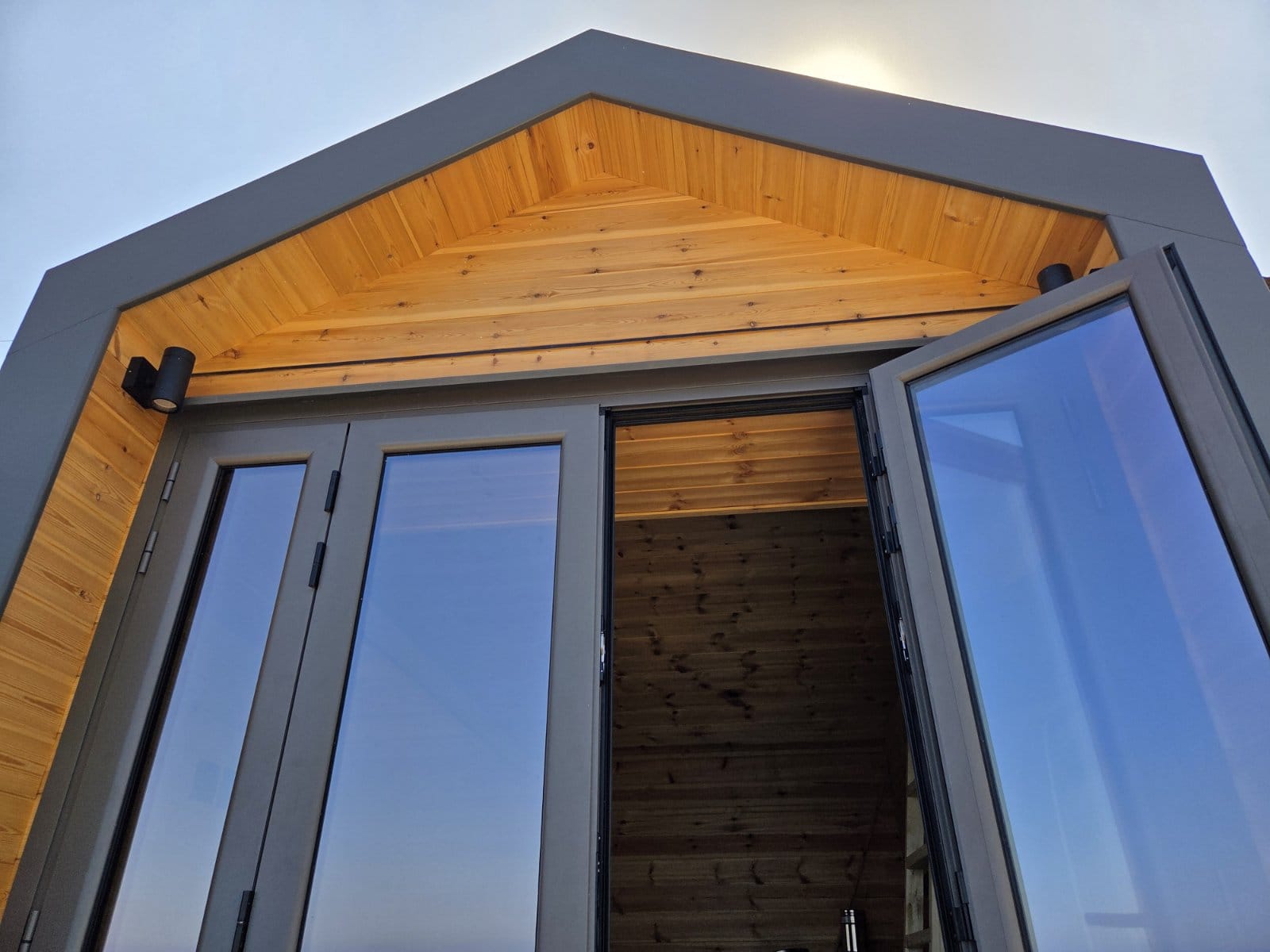

• Aluminium frame system MU2500 with double-glazed I-PLUS Light low-emissivity units (28 mm).
• Timber deck, 1.7 m².
• Dormer window.
